Go Elevated or try for Underground?

  • Work with the province and go with the Elevated option

    Votes: 42 79.2%
  • Try another approach and go for Underground option

    Votes: 7 13.2%
  • Cancel it altogether

    Votes: 1 1.9%
  • Go with a BRT solution

    Votes: 3 5.7%

  • Total voters
    53
Why do we want an LRT connection to the airport? because it's a great idea and will provide easier access to the city for people arriving at YYC. I took the skytrain downtown from YVR and it was fantastic! much cheaper and faster than a taxi or Uber.

I don't see how this line will impact the Airport connection, this stays on the wrong side of Deerfoot. The Airport connection should have been done on the Blue Line.

Why do we want an LRT connection to the airport? because it's a great idea and will provide easier access to the city for people arriving at YYC. I took the skytrain downtown from YVR and it was fantastic! much cheaper and faster than a taxi or Uber.

I don't see how this line will impact the Airport connection, this stays on the wrong side of Deerfoot. The Airport connection should have been done on the Blue Line.
I think an airport connection is a nice-to-have, but should it be prioritized over extensions/connections that may serve more Calgarians who ultimately pay for the infrastructure?

Why do we want an LRT connection to the airport? because it's a great idea and will provide easier access to the city for people arriving at YYC. I took the skytrain downtown from YVR and it was fantastic! much cheaper and faster than a taxi or Uber.

I don't see how this line will impact the Airport connection, this stays on the wrong side of Deerfoot. The Airport connection should have been done on the Blue Line.

I don't remember where or who, but someone on this board made a really strong case against an Airport LRT connection. IIRC, they argued that even in cities like YYZ and YVR where car travel is expensive and slow, airport lines still struggle to attract high levels of ridership. And an LRT connection to YYC (from either the Blue or Green line) would likely be much, much slower than taking a car (or perhaps even a bus). I might be remembering this wrong, but I think the bottom line was that if we were thinking in terms of maximizing ridership, there were many other expansions that should be prioritized over the airport.

I don't remember where or who, but someone on this board made a really strong case against an Airport LRT connection. IIRC, they argued that even in cities like YYZ and YVR where car travel is expensive and slow, airport lines still struggle to attract high levels of ridership. And an LRT connection to YYC (from either the Blue or Green line) would likely be much, much slower than taking a car (or perhaps even a bus). I might be remembering this wrong, but I think the bottom line was that if we were thinking in terms of maximizing ridership, there were many other expansions that should be prioritized over the airport.

May have been me at one point in time. And yes, funding this out of the normal transport pot in competition with other projects on a 1 to 1 basis is a bad idea. But there are other ways, which I explain below in a long post not about green line things, but about airport transit things, so I put it in spoiler tags.

Why do we want an LRT connection to the airport? because it's a great idea and will provide easier access to the city for people arriving at YYC. I took the skytrain downtown from YVR and it was fantastic! much cheaper and faster than a taxi or Uber.

I don't see how this line will impact the Airport connection, this stays on the wrong side of Deerfoot. The Airport connection should have been done on the Blue Line.
I think an airport connection is a nice-to-have, but should it be prioritized over extensions/connections that may serve more Calgarians who ultimately pay for the infrastructure?
Yeah, I have contradictory thoughts on this one. 1, airports are not great as trip generators.

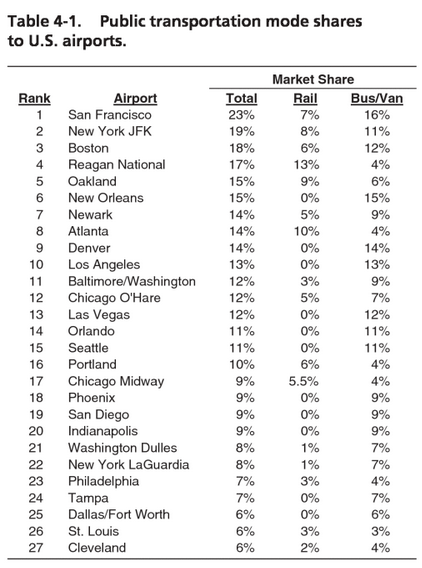

This is for passengers, and is old, from 2008:
194036

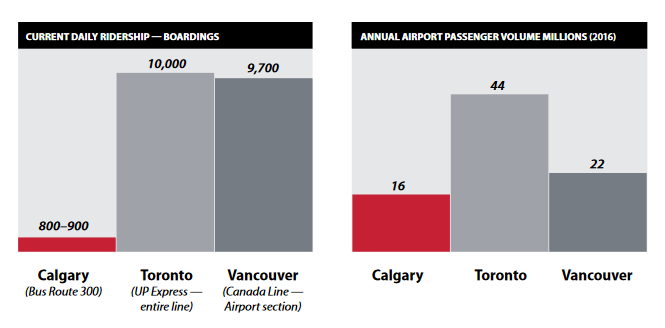

And for Canada, from the open house boards:
194037

Vancouver at 16%. Toronto, generously at 8%. Vancouver that number also includes staff remote parking, general staff and access to a mall, so the number would be lower. Toronto it includes staff, and in Toronto trips, so the number would be lower than its approximately 8%.

For travellers, a big portion for non regular travellers arrive and depart via friends and family drop off. Business travel, except for rush hour service from downtown or companies refusing to reimburse parking or cabs, I bet you capture a small number. Maybe 10 per cent of those. For those airport jobs of 46,000, how many are at the terminal that don't need to go somewhere else first, or don't have free or cheap parking, and never have to get to the airport outside of even extended transit hours? Not nearly as many.

I bet Calgary with a Blue Line only connection could capture around 6%. With Blue and Green, maybe you push 10% under current conditions.

2, the plan they have worked up so far is quite good. Short trains, frequent service is the way to go for airports. Not being a spur means it won't make the Green and Blue lines worse. Since spurs necessitate lower frequency, the forced transfer could even be said to have a negative time value, as the transfer time would be less than the average wait time for a spur train. The total travel time from downtown, without a initial waiting time via the blue line would be around 40 minutes, not bad, but slower than a cab. Where they propose stops could lead to significant other trip generation for things like offsite parking, offsite rental car, commercial and industrial, and network connectivity.
194035


3, Don't get me wrong, I think it could be very advantageous: building this in addition to the planned northern greenline would be great, and with a train for Banff, would really help sell Calgary as a large convention destination and as an easy place to visit without a car. Now, is it worth $1 billion bucks? I'd have to see a very advantageous grant stack for that to happen.

A off the top of my head proposal, with rough math using a toy cash generated calculator:
  • A Calgary area hotel tax of $2 a night would generate about $155 million (how much we could borrow today, based on the revenue) over 30 years (growth 2%, cost of capital 5%),
  • An add fare of $5 for arriving or leaving the terminal maybe (starting at 6,000 pax a day, growth 5%, cost of capital 5%) another $330 million,
  • $1 on the airport improvement fee, starting at 20 million a year, growing by 5%, cost of capital 5%, another $600 million.
All of a sudden that $1 billion looks like a small number to invest in this project! With buy in from the tourism sector and the airport, the project looks much more viable, even at lets say $1.5 billion, when in effect users/potential users are paying more than 50%. Of course, this isn't taking into account operating and maintenance costs.

Last edited:
This Human Transit blog has lots of relevant comments on the brewing Greenline debates or an Airport v. Red Line tunnel discussion.

https://humantransit.org/2019/07/portland-facing-the-east-west-chokepoint.html

It's a long post but what rings most true, is the comments around what the writer is describing as the "core-periphery debate". The Greenline's core section is being criticized due to to the difficulty and cost and a perception that "we get less track" because it's been so expensive to go through downtown to an area already serviced to some extent. But the core section is the only part everyone needs and everyone benefits from and is crucial to do right. It's a classic problem seen in many cities with their transit infrastructure that tends to favour outward expansion vs. capacity and quality of service increases.

Also airports are like subways to the sea. https://humantransit.org/2009/12/on-subways-to-the-sea.html

“Ultimately, lots of people love the idea of a subway to the sea for the same reason they like the idea of a subway to the airport — because they can imagine using it occasionally. This can yield a disconnect between the political popularity of a service and its actual ridership potential.”

Also airports are like subways to the sea. https://humantransit.org/2009/12/on-subways-to-the-sea.html

“Ultimately, lots of people love the idea of a subway to the sea for the same reason they like the idea of a subway to the airport — because they can imagine using it occasionally. This can yield a disconnect between the political popularity of a service and its actual ridership potential.”
Sounds like a train to Banff.....

I really hope this project doesn't fall apart.

I've heard a lot of people that are part of this project are pissed.

There's nothing wrong with doing value engineering. However, to do it at this stage of the game...right before tender...after all the community consultations and open houses. It's madness.
