smallspy
Senior Member
That's a very good question. And to be brutally honest, not one that I've ever considered asking.
Dan
|
|
|
- Thread starter drum118
- Start date
Dan
StealthyArrow
Active Member
Allandale25
Senior Member
smallspy
Senior Member

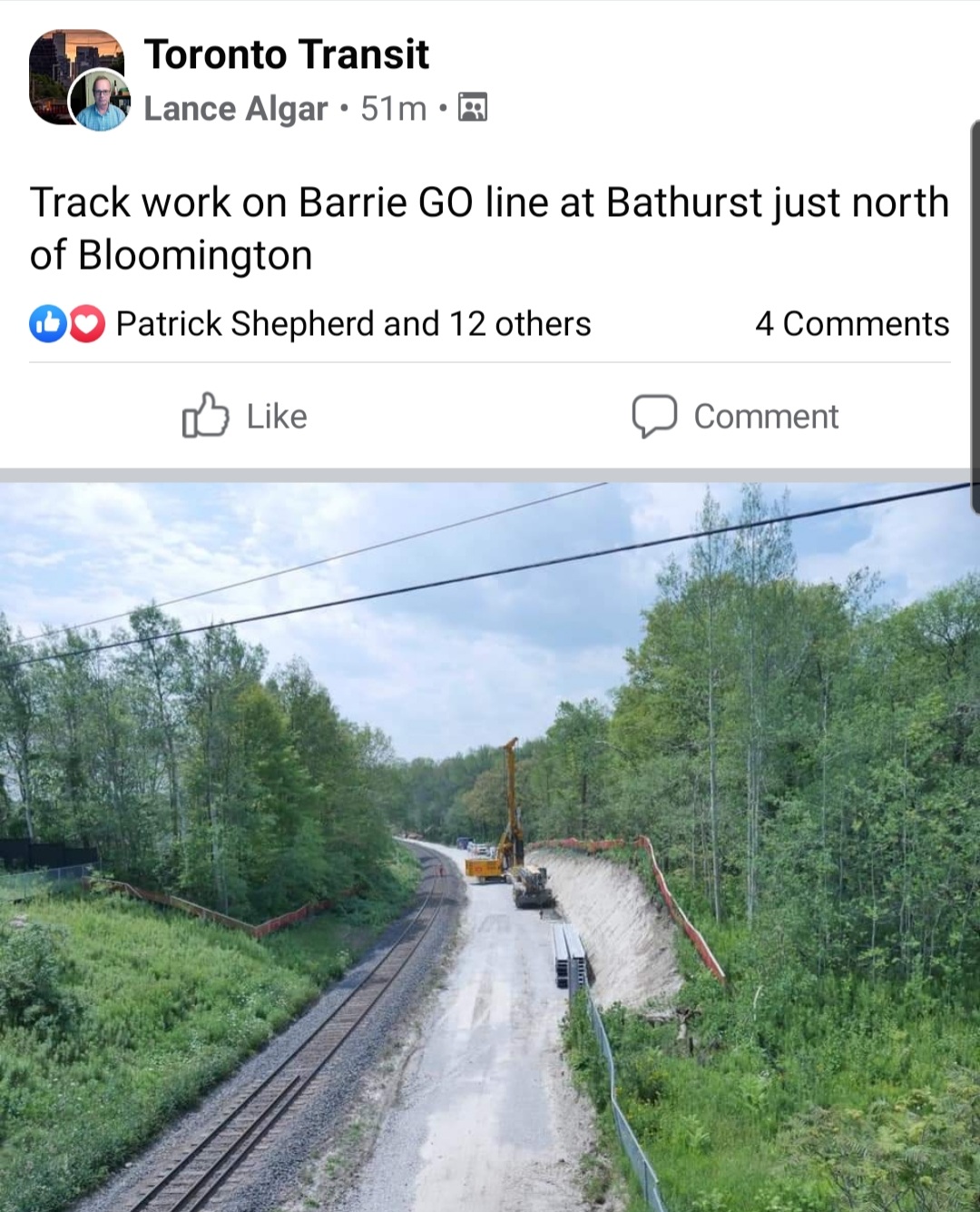

Before everyone gets their hopes up that the full double-tracking of the Barrie Line has started.....

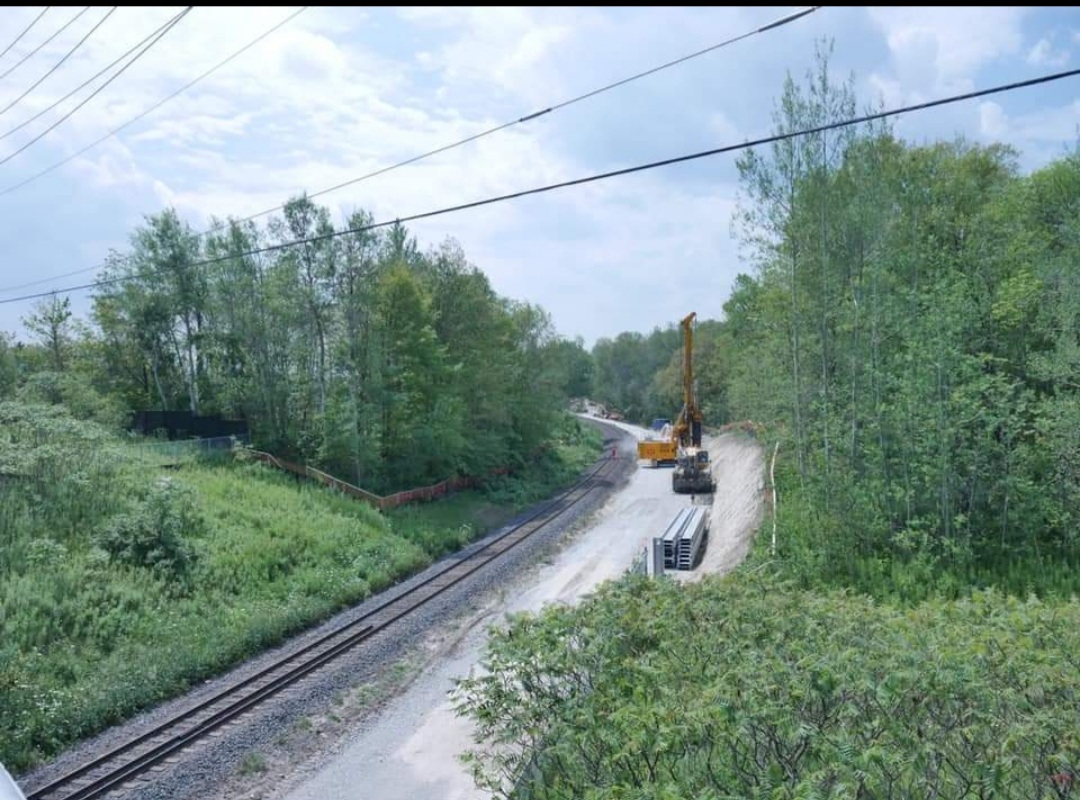

Metrolinx has very quietly started work on another short section of double track on the Barrie Line. I don't have my notes handy, but I think that this will stretch from Mile 25 (just north of the Humber River crossing) to about Mile 27 (north of Bathurst).
Dan
crs1026
Superstar
Which just happens to be nearby the lumber yard that CN served during the day, causing bustitutions….I had heard that there was a plan to construct a runaround track, but things went quiet on that. I’m not sure if the lumber yard even receives loads any longer, may have switched to transload.
- Paul
TFC
Active Member
Minor construction update - quite a bit of activity on the MX Guelph Sub at the Highway 85 bridge crossing in Kitchener this morning. PNR Railworks trucks visible on site, as well as piles of recently delivered ballast.
reaperexpress
Senior Member

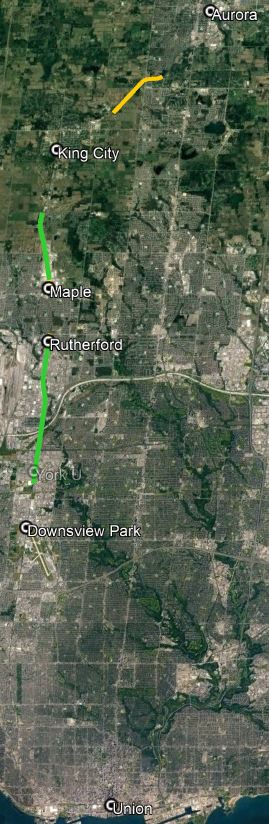

Here's my attempt at illustrating the new double track section under construction (in orange). I'm probably a bit off with the exact start/end locations.
Existing double-track segments in green

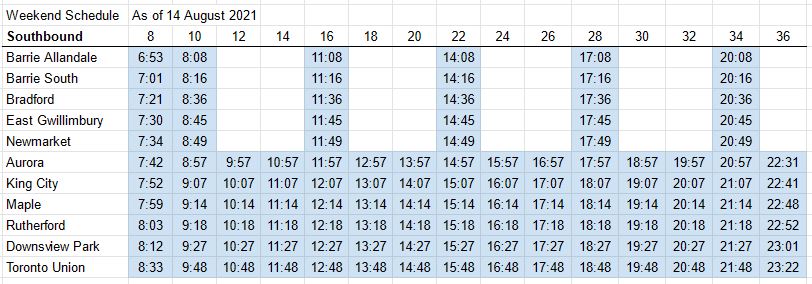

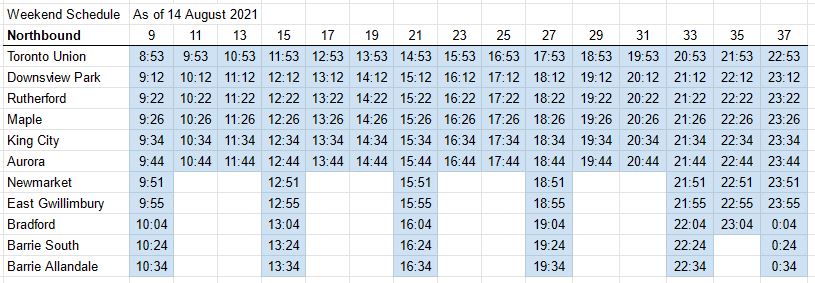

I wonder what they plan to do with it. My guess is that it has something to do with addressing the ridiculous train movements included in the weekend schedules due to the through trips to Allandale.
Normally the hourly pattern is that the northbound train arrives at Aurora at :44, then departs southbound at :57. But the train arriving at 11:44 doesn't depart southbound at 11:57, because that is already covered by run 16 arriving from Allandale. So that earlier train needs to go hide somewhere for an hour to let run 16 past, as well as run 15 which is heading north to Allandale. I assume that it gets stashed in the siding between Maple and King City. It then needs to follow run 15 up to Aurora, in order to start run 18 southbound at 12:57.
The simplest purpose for the new segment of double-track is to keep the same operation, but store the extra train closer to the station.
The more interesting notion is that the trains to Barrie would slot in between the hourly services, passing them at this new siding and another new siding exactly 30 minutes south of it (somewhere around Eglinton). That way the base hourly service could arrive and depart Aurora regularly rather than every third train needing to go sit a time out for an hour while the Allandale services pass by.
smallspy
Senior Member
This is the thing.....no one knows what this one is for, at least in terms of my contacts within Metrolinx.
Maybe Paul has it right in that this will help prevent issues with CN servicing the lumber yard up there. It would certainly go a long way towards doing that. It would also give GO another place to have trains meet if one is running late - it could help prevent cascading delays further down the schedule.
Dan
Last edited:
EnviroTO
Senior Member
Milliken and Mount Dennis are going to have amazing visibility from the street. This kind of station design which leads to street views of passengers and trains coming into the station and easy access to both sides of the street (for Milliken) should be more common. It is convenient to pedestrians to have the station so well connected to the street and acts like a billboard advertising GO service.
At Mount Dennis there isn't a south side of Eglinton entrance but everything that a pedestrian would walk to on the south side would be reached via the Weston intersection, Black Creek intersection, or via Photography Drive anyways.
At Mount Dennis there isn't a south side of Eglinton entrance but everything that a pedestrian would walk to on the south side would be reached via the Weston intersection, Black Creek intersection, or via Photography Drive anyways.
Allandale25
Senior Member
Attachments
generalcanada
Senior Member

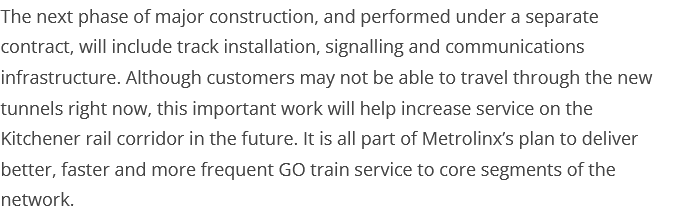

"late this year"
thats sooner than the march 2022 date ive heard about
allengeorge
Senior Member

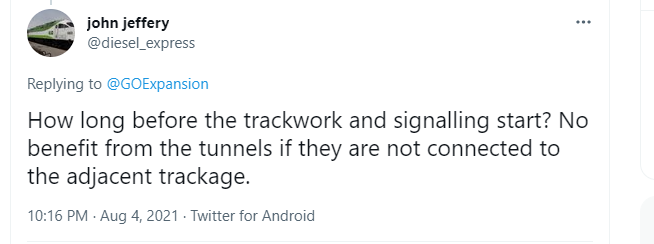

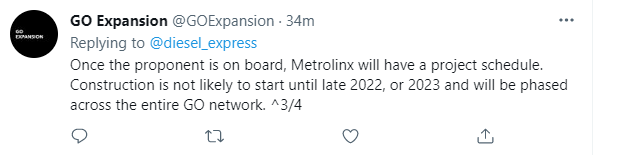

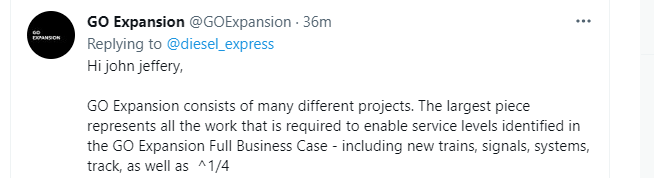

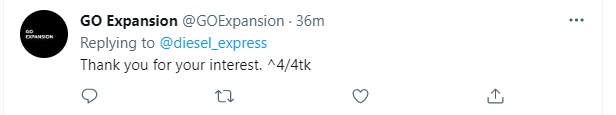

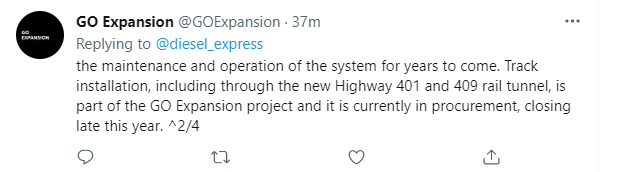

My understanding is that the track work for the tunnel is on procurement, and they hope to have it finalized late this year. I think the full electrification contract is still sometime next year?
Coolstar
Senior Member
No. I interpret it as:
- The track laying at the 409/401 tunnel is part of the OnCorr works for GO Expansion.
- They announce the winning team for the OnCorr works late this year.
- Financial close happens in March 2022.
- OnCorr works start in late 2022/2023.
allengeorge
Senior Member
I would love for that to be the case. Let’s see what happens.
