Addendum: The above presents a conundrum in terms of Canada operating higher speed passenger services.

Did an extensive read of the regs, and discovered this:
1. SHORT TITLE
These Rules may be cited as the Track Safety Rules (TSR).
[...]
4. APPLICATION
4.1 These Rules apply to all federally regulated railway companies operating on standard gauge track.

4.2 The purpose of these Rules is to ensure the safe operation of movements on standard gauge track owned by, operated on or used by a railway company.

4.3 Railway wishing to operate movements at speeds greater than Class 5 track must have a plan approved by the minister.

[...]
https://www.tc.gc.ca/eng/railsafety/rules-tce54-831.htm

Underlining above mine. Very interesting....Couldn't find the regs/chart for maximum speed allowed for at-grade crossings though. I do recollect D-S as making claims on that as Paul states.


Attachments

  • upload_2018-7-2_10-10-40.png
    96.8 KB · Views: 583
Last edited:
Has TC ever published anything to this effect? It makes sense if you compare to the US where most 125mph grade crossings have been eliminated but TC doesn't follow US cab signal norms etc., so I would think they would draw the line at 100 if they were drawing it at all.
New Grade Crossing
Prohibition
Marginal note:Construction
29
A person must not construct a grade crossing if

  • (a) the railway design speed would be more than 177 km/h (110 mph); or

  • (b) the road approach of the proposed grade crossing would be a freeway, taking into account the characteristics set out for rural roads in Table 10-3 of the Grade Crossings Standards or the characteristics set out for urban roads in Table 10-4 of those Standards, as applicable.
http://laws-lois.justice.gc.ca/eng/regulations/SOR-2014-275/page-3.html#docCont

I can’t give you a specific answer on this particular corridor, but there are good reasons why new rail services don’t generally fit well into existing highway medians unless the highway was already designed to double as a ROW, as explained in this blog article:
https://pedestrianobservations.com/2014/09/01/putting-rail-lines-in-highway-medians/

Sensible piece.

Though it also says this: "Tellingly, HSR in Europe is frequently twinned with motorways. It is not about integration with cars, since those alignments are rarely if ever meant to have major stops in their middle. Instead, it’s about picking a pre-impacted alignment, where there are fewer property takings and fewer NIMBYs. This logic is sound, but I often see Americans take it to extremes when discussing HSR"

It seems to me certain segments, not all of the 400-series highways would be well suited to this. You could absolutely do side-running as the configuration.

The 412 as noted is quite straight, as is the 401 from just east of Oshawa to Pt. Hope. The section east of there is a bit more wobbly.

It seems to me certain segments, not all of the 400-series highways would be well suited to this. You could absolutely do side-running as the configuration.

The 412 as noted is quite straight, as is the 401 from just east of Oshawa to Pt. Hope. The section east of there is a bit more wobbly.
There's a litany of problems doing this, not the least 'starting from scratch' with EA approval, whereas if you re-use an established but abandoned RoW, the Transportation Act allows all sorts of latitude to 'fast track' the processs.

Thus Urban's link stating this:
"construction on extant (often disused) rail rights-of-way tends to be cheaper." And quicker to approve and build, often a less congested way of getting from hub to hub, which is exactly what VIA describe in their prospectus on this. Here's one of the pages at this string where routing for HFR has been deeply debated:
https://urbantoronto.ca/forum/threads/via-rail.21060/page-40

Sensible piece.

Though it also says this: "Tellingly, HSR in Europe is frequently twinned with motorways. It is not about integration with cars, since those alignments are rarely if ever meant to have major stops in their middle. Instead, it’s about picking a pre-impacted alignment, where there are fewer property takings and fewer NIMBYs. This logic is sound, but I often see Americans take it to extremes when discussing HSR"

It seems to me certain segments, not all of the 400-series highways would be well suited to this. You could absolutely do side-running as the configuration.
The problem is less building a railway within the Highway median per se than having to enter and to leave the median at some point: the smaller the angle is in which you intersect with the Highway lanes, the more expensive the grade separation will become - and starting from the median means that you start from a position only a few meters away and parallel from these Highway lanes. I just have to drive 20 km north from Montreal to see the almost 500 Meter long bridge which was required for the Train de l'Est to enter the Highway median near Repegtigny:
Terrebonne grade separation.jpg


It should also be noted that leaving the Highway median is not only required at the start and end of the whole bypass, but also whenever the highway makes a significant bend (unless, of course, you are fine with having the train slow down for the Highway's design speed, i.e. 120-140 km/h). The problem with "side-running" is that you would either have to go underground at every current (and future!) Highway exit, in order to allow the Highway access ramps to pass over the tracks, or to have so much distance between the Highway and the new ROW that you loose most of the benefits of bundling both. Also, you might have to realign the entire Highway if you are on its outside in a curve and require a much higher curve radius than what the Highway has been designed for...

The 412 as noted is quite straight, as is the 401 from just east of Oshawa to Pt. Hope. The section east of there is a bit more wobbly.
I've already proposed something very similar to your idea here 4 years ago:
The first HSR segment would be approximately 38 km long, leaving the CN alignment directly after Oshawa and rejoining just before Port Hope after following (and crossing two times) the 401 Freeway:

View attachment 37437


The second HSR segment would leave the CN alignment in Marysville and rejoin it approximately 57 km later in Kingston Mills after bypassing Napanee and Kingston, thus necessitating the construction of new rail stations on the northern side of the 401 Freeway:

View attachment 37438
However, having read up on this subject since then, I have started to understand that the viability of any intercity greenfield rail project comes mainly from increasing available rail corridor capacity (which actually was the main motivation for building HSR in Japan, France, Germany and Italy, while decreasing travel time was just a welcome side effect). You therefore need to bypass the pinch points which constrain capacity and I'm afraid that those pinch points which constrain the current frequencies between Toronto and Ottawa or Montreal are not located between Oshawa and Port Hope or Marysville and Gananoque. You would therefore be stuck with exactly the same frequencies as today and almost the same delays and while you may indeed end up saving 20-30 minutes from the existing travel times, I'm highly sceptical that these travel time savings alone would represent sufficient benefits to justify the non-trivial construction costs...

PS: Are we by any chance talking about a different Highway 412 when you remark that "The 412 as noted is quite straight"? This Highway 412 segment at least looks neither straight nor conveniently located to double as a rail corridor:

http://www.thekingshighway.ca/MAPS/Hwy412map.htm


Attachments

  • Terrebonne grade separation.jpg
    Terrebonne grade separation.jpg
    249.9 KB · Views: 850
  • Hwy412map.jpg
    149.2 KB · Views: 854
Last edited:
The problem is less building a railway within the Highway median than having to enter or leave the median: the smaller the angle is in which you intersect with the Highway lanes, the more expensive the grade separation will become - and starting from the median means that you start from a position only a few meters away and parallel from these Highway lanes. I just have to drive 20 km north from Montreal to see the almost 500 Meter long bridge which was required for the Train de l'Est to enter the Highway median near Repegtigny:

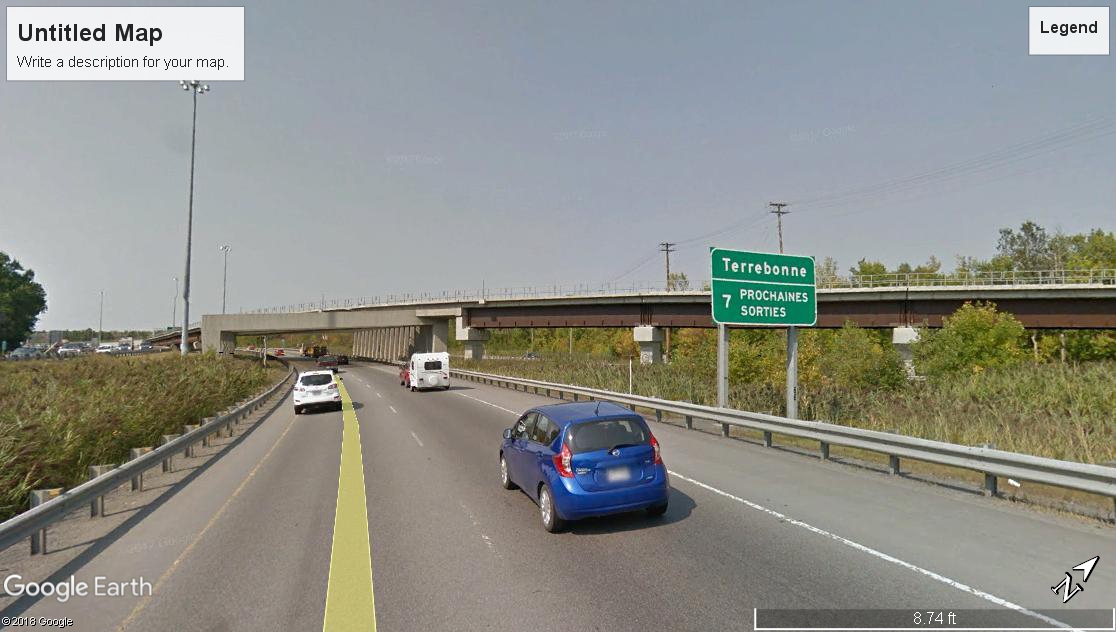

View attachment 148866

It should also be noted that leaving the Highway median is not only required at the start and end of the whole bypass, but also whenever the highway makes a significant bend (unless, of course, you are fine with having the train slow down for the Highway's design speed, i.e. 120-140 km/h). The problem with "side-running" is that you would either have to go underground at every current (and future!) Highway intersection, in order to allow the Highway lanes to pass over the tracks, or to have so much distance between the Highway and the new ROW that you loose most of the benefits of bundling both. Also, you might have to realign the entire Highway if you are on its outside in a curve and require a much higher curve radius than what the Highway has been designed for...


I've actually proposed something very similar to your idea here 4 years ago:

However, having read up on this subject since then, I have started to understand that the viability of any intercity greenfield rail project comes mainly from increasing available rail corridor capacity (which actually was the main motivation for building HSR in Japan, France, Germany and Italy, while decreasing travel time was just a welcome side effect). You therefore need to bypass the pinch points which constrain capacity and I'm afraid that those pinch points which constrain the current frequencies between Toronto and Ottawa or Montreal are not located between Oshawa and Port Hope or Marysville and Gananoque. You would therefore be stuck with exactly the same frequencies as today and almost the same delays and while saving maybe 20-30 minutes from the existing travel times, I'm highly sceptical that this alone would represent sufficient benefits to justify the non-trivial construction costs...

I had to do a double take, because the Marysville I'm familiar with is on Wolfe Island, which never had railway service. But then I realized there's a second Marysville only 60 kilometres away, near Deseronto.

I've already proposed something very similar to your idea here 4 years ago:

However, having read up on this subject since then, I have started to understand that the viability of any intercity greenfield rail project comes mainly from increasing available rail corridor capacity (which actually was the main motivation for building HSR in Japan, France, Germany and Italy, while decreasing travel time was just a welcome side effect). You therefore need to bypass the pinch points which constrain capacity and I'm afraid that those pinch points which constrain the current frequencies between Toronto and Ottawa or Montreal are not located between Oshawa and Port Hope or Marysville and Gananoque. You would therefore be stuck with exactly the same frequencies as today and almost the same delays and while saving maybe 20-30 minutes from the existing travel times, I'm highly sceptical that this alone would represent sufficient benefits to justify the non-trivial construction costs...

TY for the thoughtful reply. Your proposal from some years ago mirrors what I was thinking. Your re-thinking of that is the kind of information I find useful.

PS: Are we by any chance talking about a different Highway 412 when you remark that "The 412 as noted is quite straight"? This Highway 412 segment at least looks neither straight nor conveniently located to double as a rail corridor:

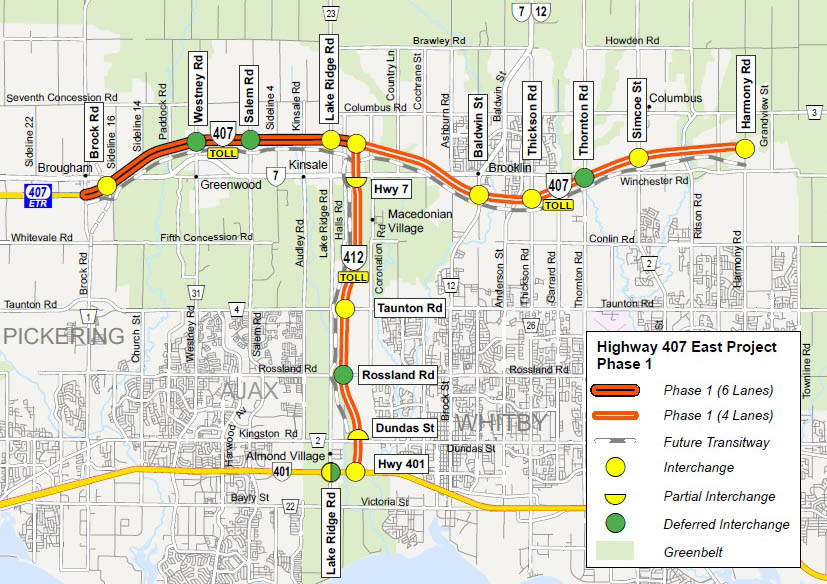

View attachment 148867
http://www.thekingshighway.ca/MAPS/Hwy412map.htm[/QUOTE]

I expressed myself poorly, in as much as I'm not stuck on the median notion as the use of an ROW already in public ownership.

You can see the 412 ROW on google and its rather larger than the existing highway and offers a straight-line up for a railway, the track might be at times, but need not be confined to the immediate alignment of the highway.

I'm curious about that bend in 412, at first blush it doesn't appear necessary, I'll have to look up the EA as to why they did it that way.
